Cell Type :
Lithium iron phosphateWarranty :
6 yearsNominal Voltage :
12.8VRated Capacity :
280AhEnergy :
3584WhMax. Continuous Charge Current :
160AMax. Continuous Discharge Current :
200A

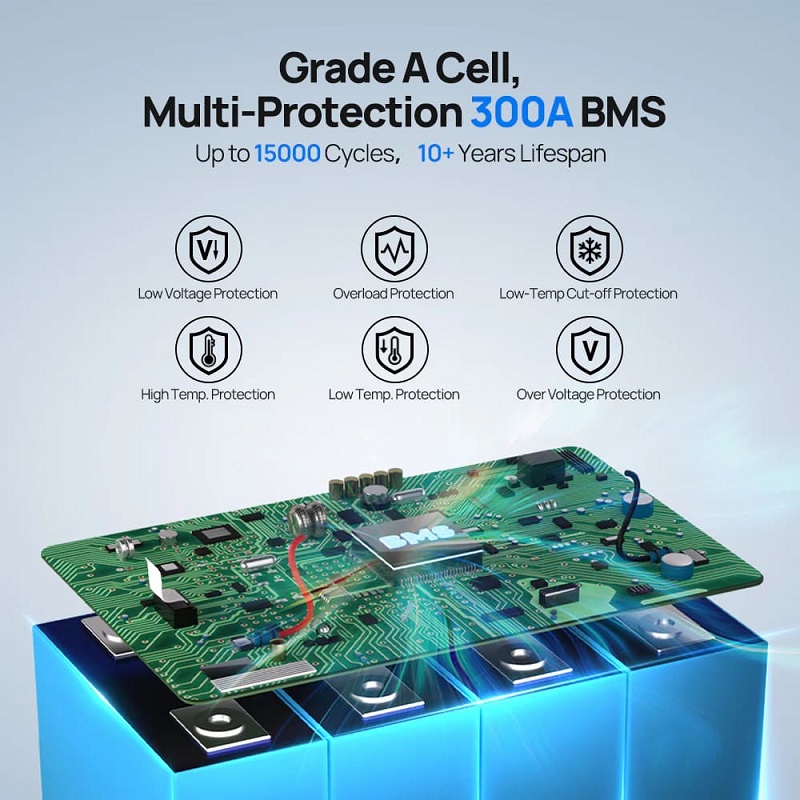

Grade A Cells & 300A BMS

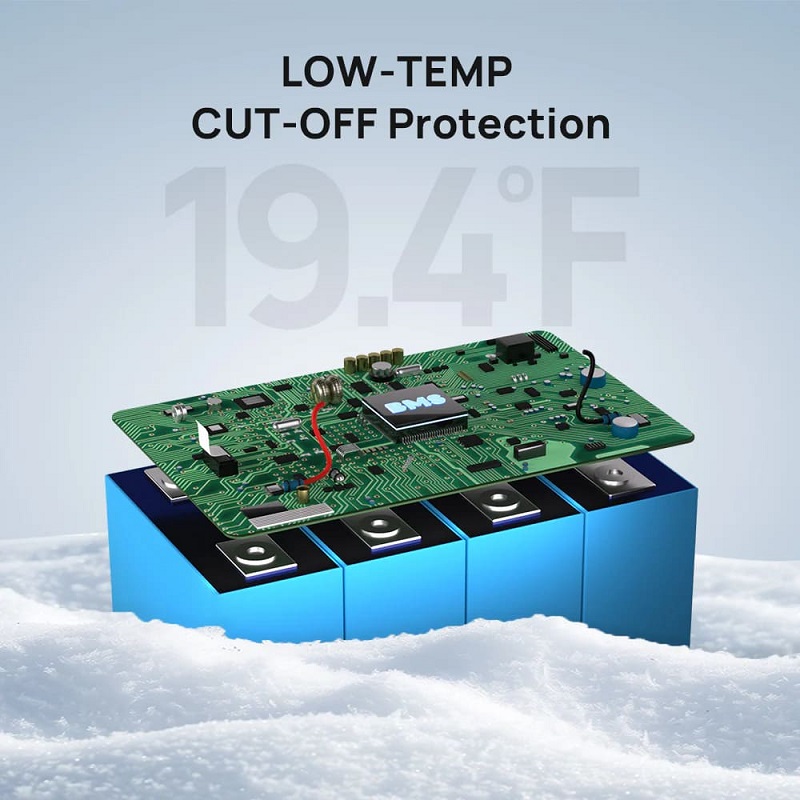

Utilizes Grade A battery cells and a robust 300A BMS with comprehensive protection mechanisms against high/low temperatures (automatically disconnects charging when the cell temperature falls below 19.4°F) , voltage fluctuations, and overloads; It also boasts an long lifespan of up to 15000 deep cycles.

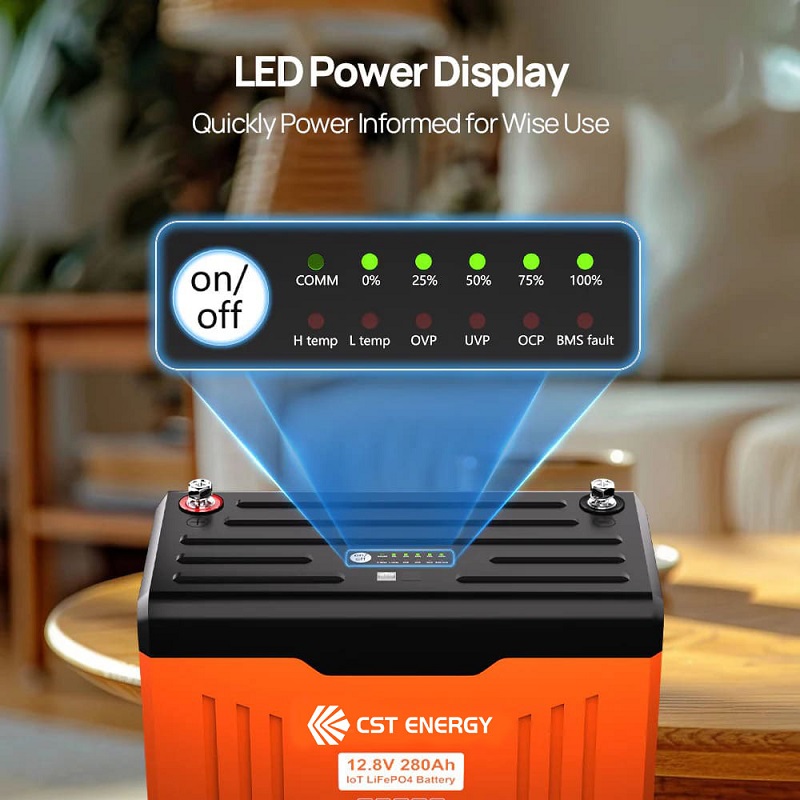

LED Indicator Panel
Equipped with intelligent LED display lights showcasing battery status, SOC levels and buzzer alarms for user convenience, knowing your battery status and power level easily, helpful for quick troubleshooting.
Bluetooth and Remote Monitoring
Supporting parallel connection,easily realize the system expansion. It is perfectly adapted to off-grid solar systems, and can effectively store the power converted by solar panels.
Exceptional Performance
CST Energy 280Ah lifepo4 battery has 3584Wh of energy, can be expanded to 57.3kwh with 4P4S, supporting 3 charging ways including 20A battery chargers, solar panels, and generators for maximum flexibility.
Battery Capacity |
280Ah |
Rated Voltage |
12.8V |
Battery Power |
3584Wh |
Max Charge Current |
160A |
Max Discharge Current |
200A |
Discharge Cut-Off Voltage |
10V |
Max Charge Voltage |
14.6 V |
Max.Parallel&Series |
4P4S |
Battery Size |
20.98*9.49*8.82inch |
Battery Weight |
63.93 lbs |
