Cell Type :
Lithium iron phosphateWarranty :
6 yearsNominal Voltage :
12.8VRated Capacity :
280AhEnergy :
3584WhMax. Continuous Charge Current :
250AMax. Continuous Discharge Current :
250A

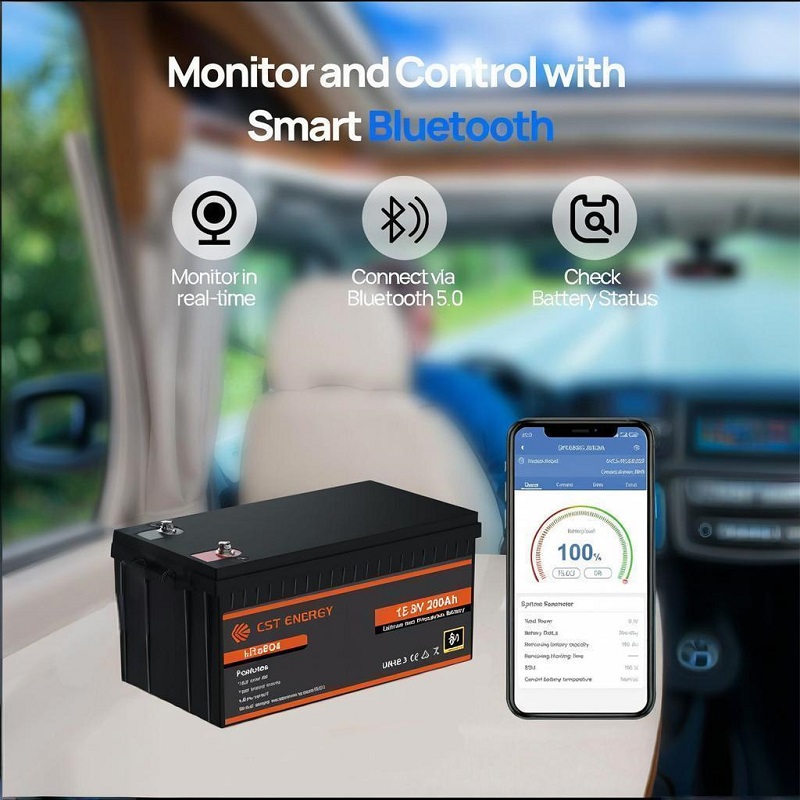

Bluetooth APP Monitoring
You can collect and store battery operation data through the APP, analyze the battery health status, ensure the safety of use, improve the management efficiency, and extend the life of the battery.

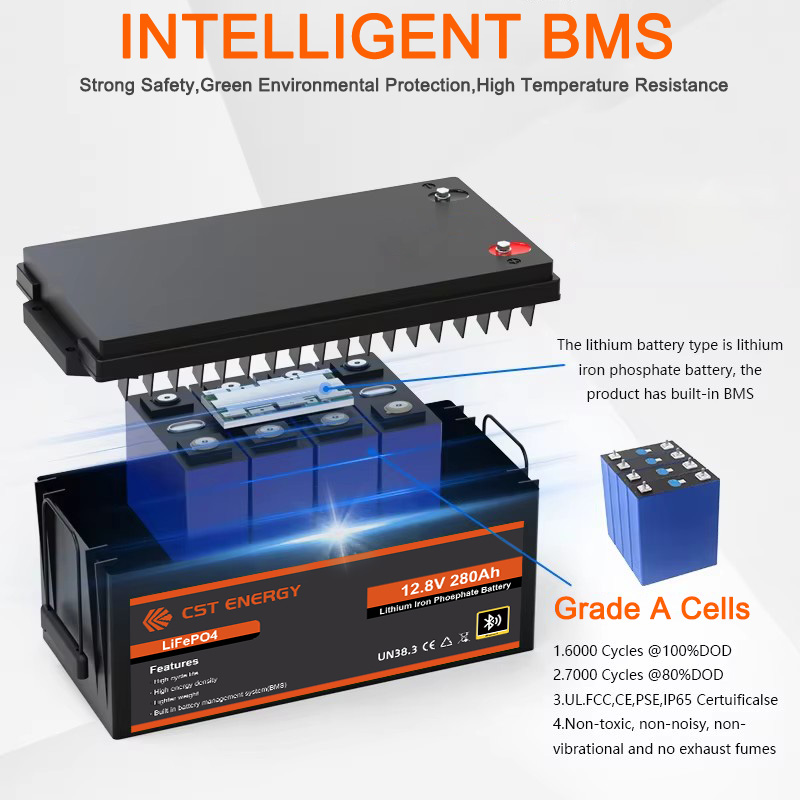

Smart BMS with High-Temp Protection
The intelligent BMS can monitor voltage, current and temperature in real time to prevent over-charging and over-discharging and upgraded high-temperature cut-off function ensures suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60℃.

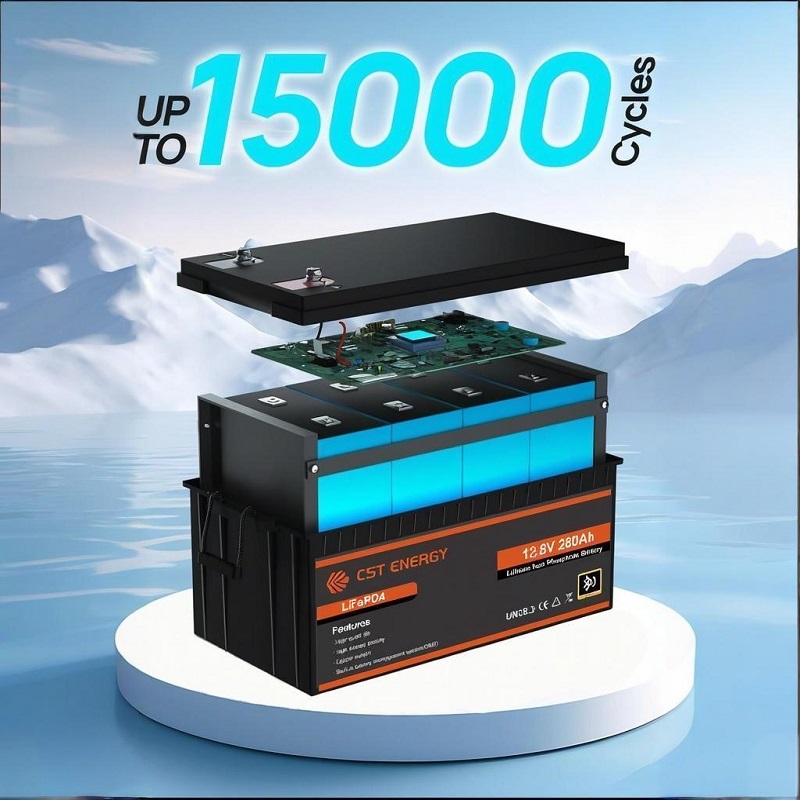

Grade-A LiFePO4 Cells
It is Grade-A cells, selected high-quality materials, high energy efficiency and low loss, excellent safety and security, suitable for high-end equipment, stable and reliable performance, is your ideal energy solution.
Long Life Design For Durability
Built with the safest LiFePO4 battery technology,it boasts exceptional durability and a longer lifespan, with an impressive 6000+ cycles for a 10-year lifespan.It can provide lasting power support for your equipment.

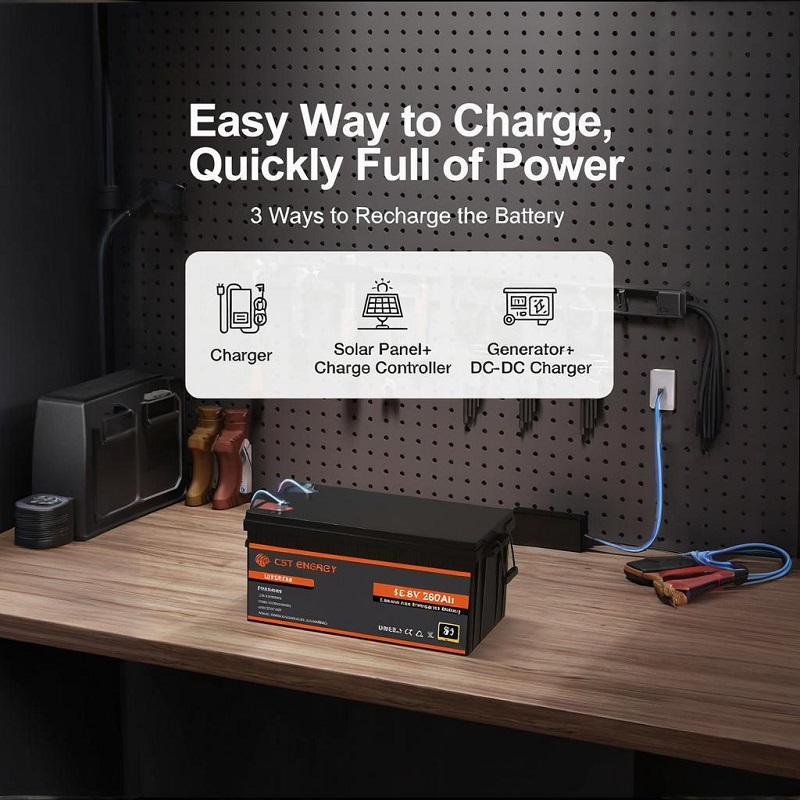

Charger Recommendation
It takes 14 hours to charge with 12V 20A LiFePO4 battery charger, about 6 hours to charge with 600w solar panel, and 14 hours to charge with 20A DC generator
Battery Capacity |
280Ah |
Rated Voltage |
12.8V |
Battery Power |
3584Wh |
Maximum Charge/ Discharge Current |
250A |
Discharge Cut-Off Voltage |
>8.4V |
Recommended Charge Voltage |
14.6 V |
Charge Temperature Range |
0-55℃ |
Disharge Temperature Range |
﹣20-55℃ |
Screw size |
M8 |
Battery Size |
17.83*9.37*8.70 inch |
Battery Weight |
62.83 lbs |
