Cell Type :
Lithium iron phosphateWarranty :
6 yearsNominal Voltage :
51.2VRated Capacity :
200AhEnergy :
10240WhMax. Continuous Charge Current :
100AMax. Continuous Discharge Current :
100A
Digital Displays
Equipped with digital display, key parameters such as power and voltage can be seen at a glance, which is convenient to grasp the usage information and enhance the operation experience. It is a model of the combination of modern technology and life, practical and intelligent.
Multiple Communication Interface
It has a variety of built-in communication interfaces to achieve real-time monitoring and collaborative operation, ensure that the battery status is fully controlled, improve system efficiency, and ensure the stable operation of the equipment.
ABS Material
The shell is made of ABS material, which is lightweight and high-strength, impact resistant and corrosion resistant, effectively protecting the internal structure of the battery and prolonging its service life.
Parallel Or Series Operation
It supports parallel and series operation, flexible configuration to enhance capacity and voltage, meet diversified application requirements, enhance system reliability and realize efficient energy utilization.

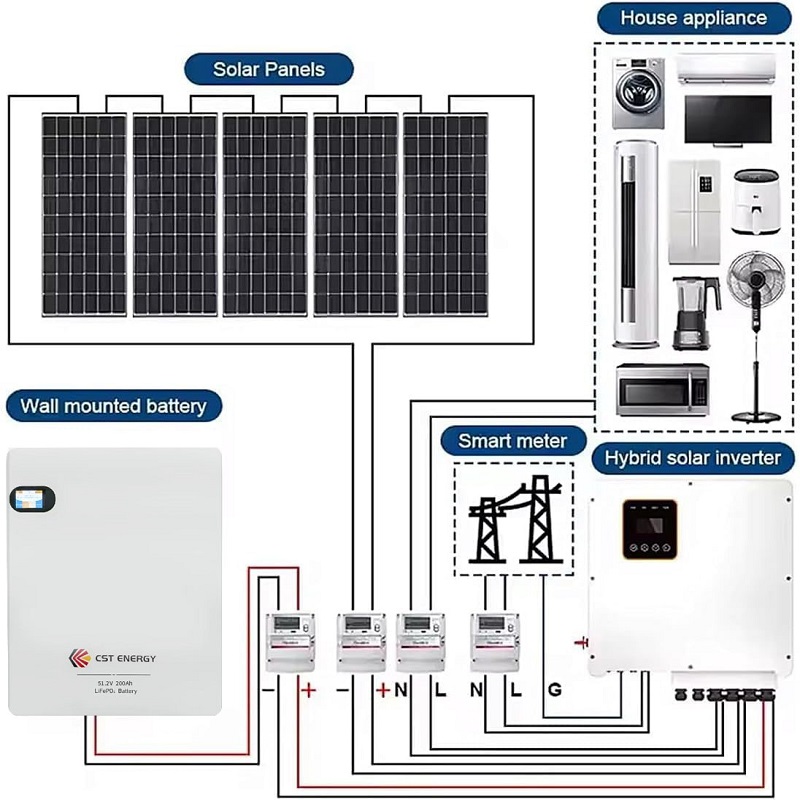

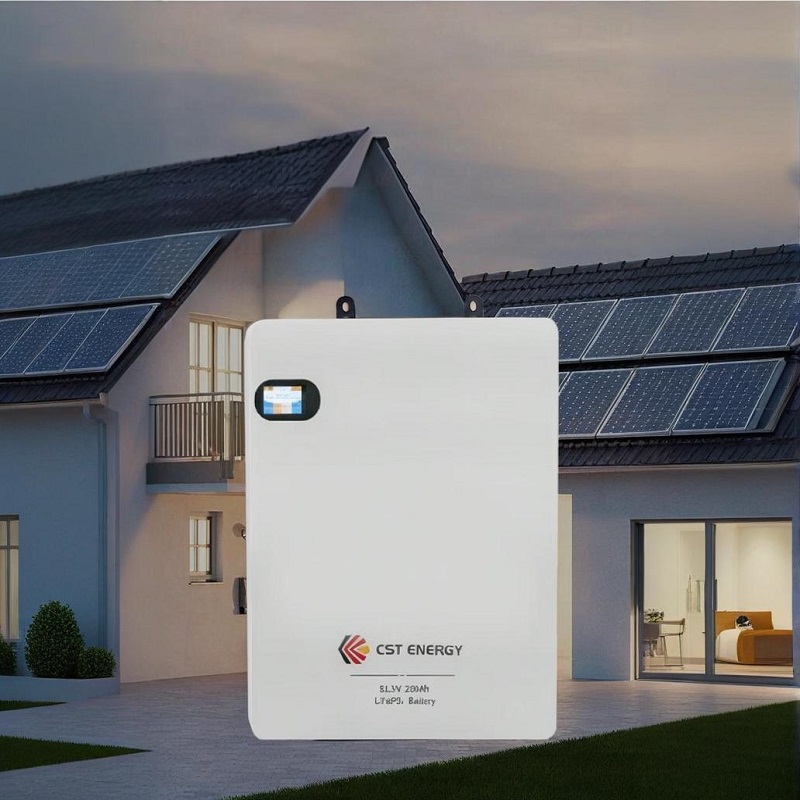

Multiple Use Scenarios
It provides comprehensive coverage from home energy systems to large-scale power storage projects. Home energy storage is stable and reliable, and large-scale power stations are energy efficient and energy saving, meeting diversified energy storage needs and helping energy transformation.
Battery Capacity |
200Ah |
Rated Voltage |
51.2V |
Battery Power |
10240Wh |
Maximum Charge/ Discharge Current |
100A |
Voltage Range |
43.2~57.6V |
Maximum Charge Voltage |
57.6V |
Charge Temperature Range |
0-55℃ |
Disharge Temperature Range |
﹣20-55℃ |
Screw size |
M8 |
Battery Size |
27.56*21.65*7.68 inch |
Battery Weight |
209.44 lbs |
