Cell Type :
Lithium iron phosphateWarranty :
6 yearsNominal Voltage :
51.2VRated Capacity :
100AhEnergy :
5120WhMax. Continuous Charge Current :
100AMax. Continuous Discharge Current :
100A

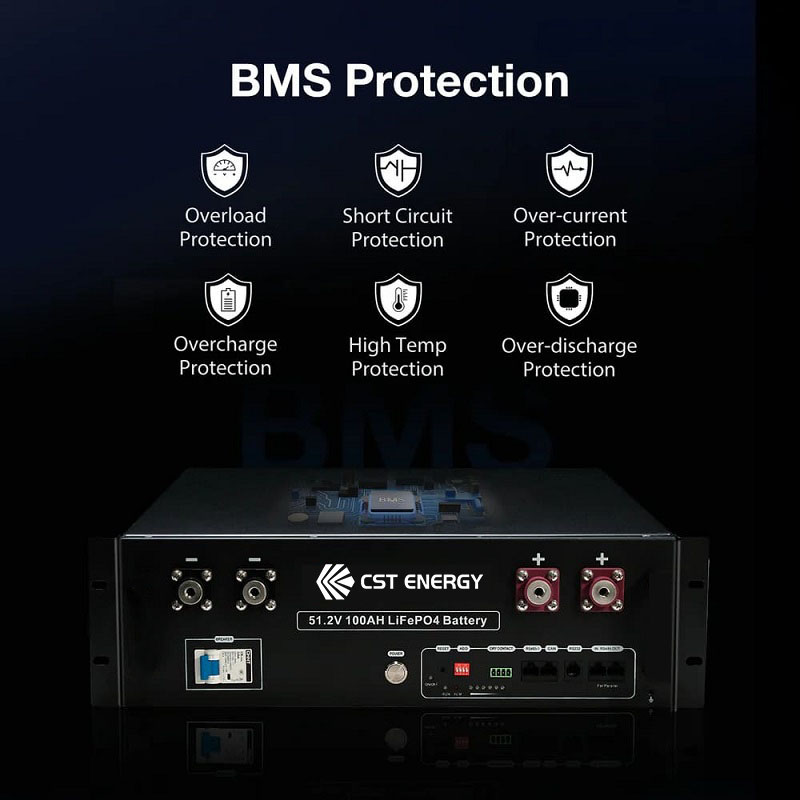

Protection with BMS and LED
Rest easy with our smart 100A Bulit-in BMS, complete with LED indicators for status updates at a glance. It actively protects against overcharge, over-discharge, short circuits and so on, ensuring the safety of your battery investment
Seamless Compatibility, Plug-and-Play
CST Energy 48V(51.2V)Server Rack Battery support CAN/RS485, which allows to communicate effortlessly with popular all-in-one solar inverter chargers from brands like Victron, SMA, DEYE, GoodWe, and Growatt, ensuring a plug-and-play experience with no additional configuration needed
Extended Service Life
Invest in longevity with our 48V 100Ah LiFePO4 battery. Crafted with Grade A cells, which offers up to 15000 cycles, ensuring a longer service life that exceeds standard options. This battery is tailor-made for solar energy systems, delivering a high return on investment over the years
Energy Freedom
Power your home with our 48V 100Ah LiFePO4 battery, offering 5.12kWh of energy per unit. Alos you can connect up to 15 batteries in parallel to achieve a massive 76.8kWh energy. This robust energy storage solution is ideal for home solar systems, ensuring that your household's daily power needs are more than met
Easy Installation
Our 48V 100Ah LiFePO4 battery, crafted with a durable metal shell and a slim profile, efficiently saves space compared to series of 4*12V 100Ah batteries. It can be easily mounted in a 3U server rack, making it a practical choice for compact energy storage systems
Battery Capacity |
100Ah |
Rated Voltage |
51.2V |
Battery Power |
5120Wh |
Maximum Charge/ Discharge Current |
100A |
Voltage Range |
40~58.4V |
Maximum Charge Voltage |
58.4V |

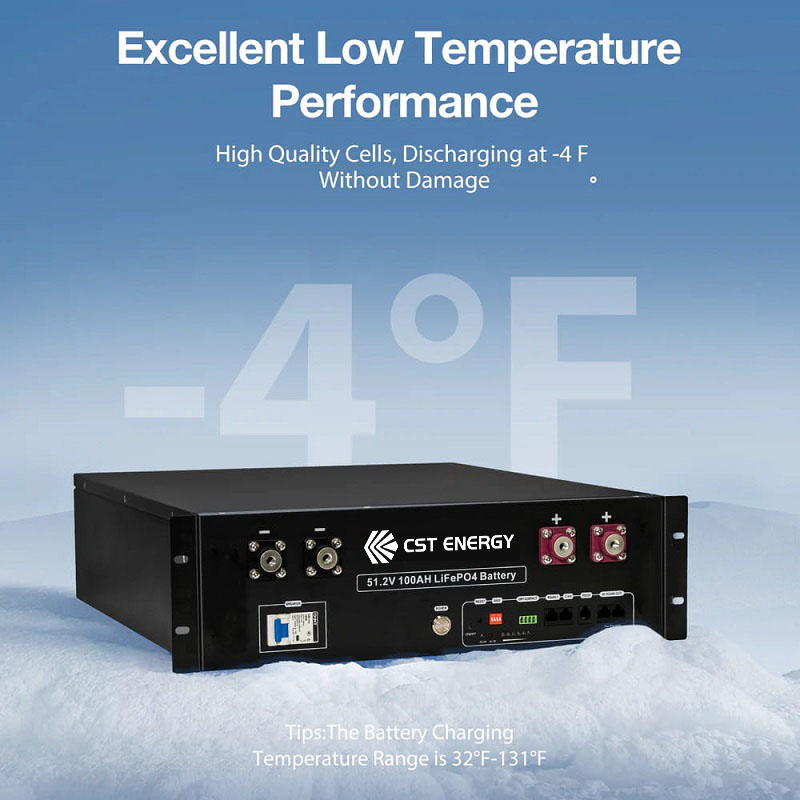

Charge Temperature Range |
0-55℃ |
Disharge Temperature Range |
﹣20-55℃ |
Screw size |
M8 |

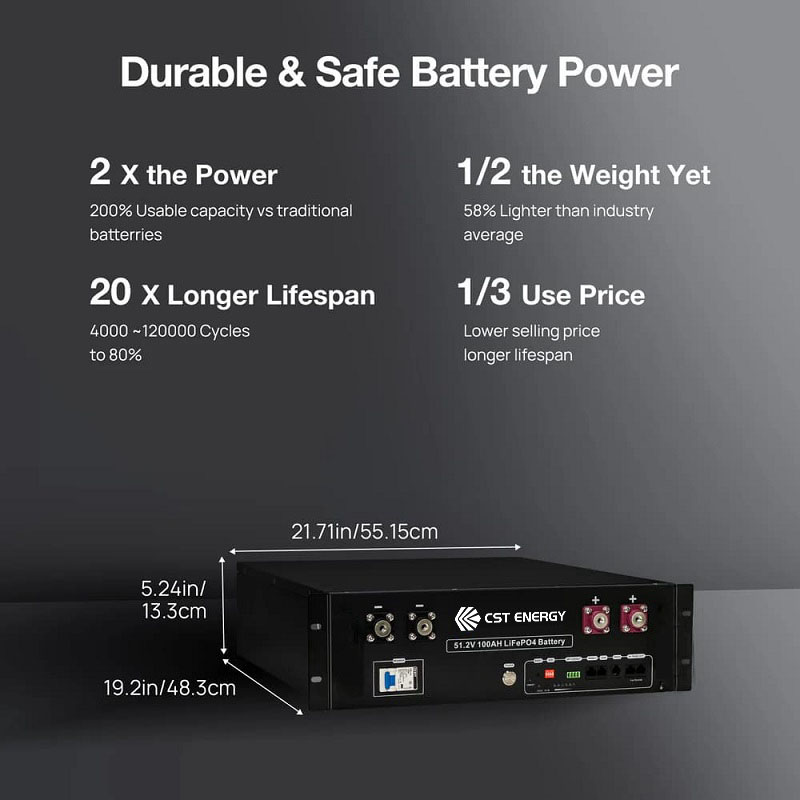

Battery Size |
21.71*19.02*5.24 inch |
Battery Weight |
94.8 lbs |
