Cell Type :
Lithium iron phosphateWarranty :
6 yearsNominal Voltage :
12.8VRated Capacity :
50AhEnergy :
1280WhMax. Continuous Charge Current :
100AMax. Continuous Discharge Current :
100A

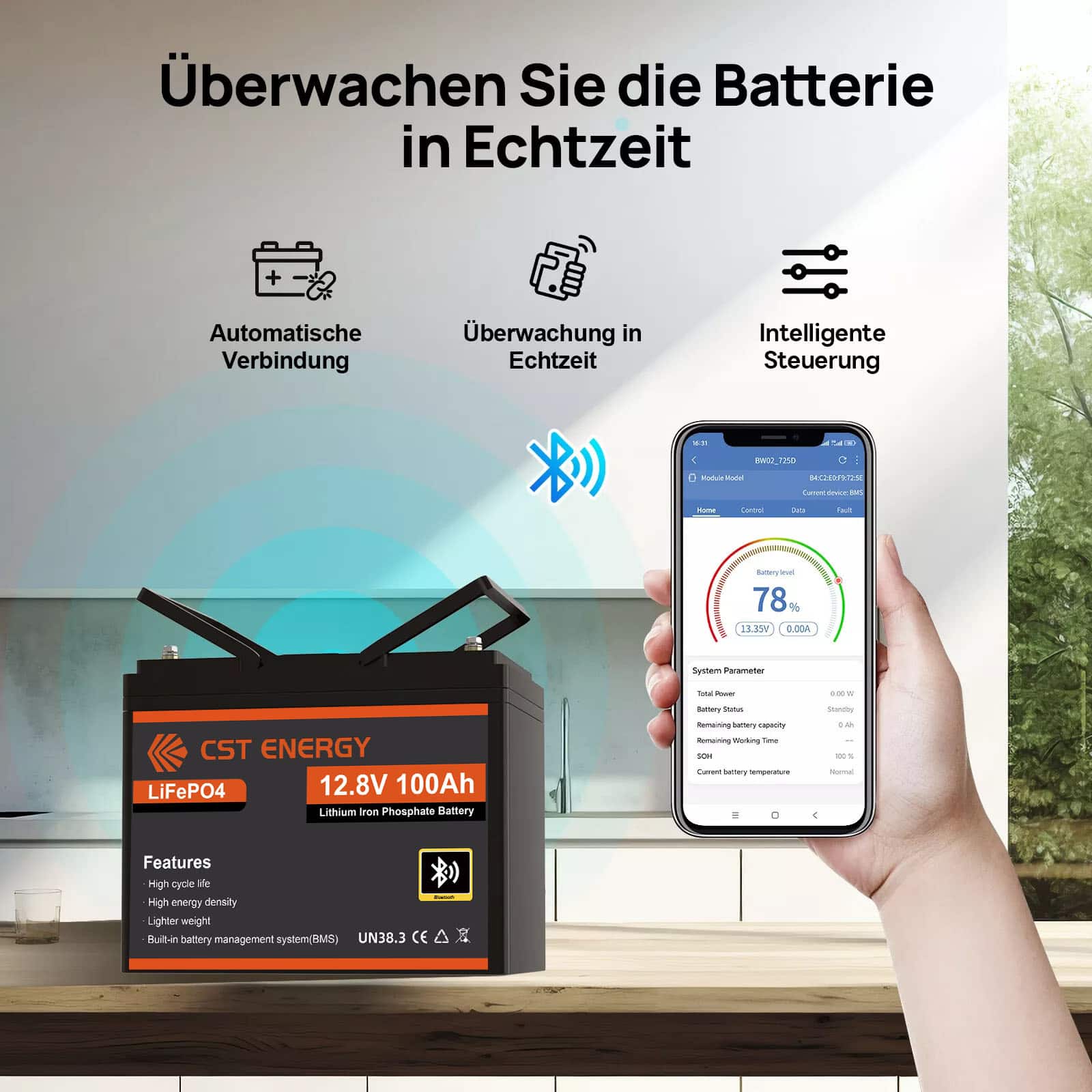

Bluetooth Real Time Monitoring
You can get the lithium battery's voltage, current, temperature and other key parameters in real time through your cell phone, which makes it easy to monitor the battery status in time.Achieve remote monitoring and management on mobile devices to improve the convenience of use.
Lightweight & Easy Installation
It provides more Wh/Kg while also beingup to 1/3 the weight of its SLA equivalent.The lightweight lithium battery can more easily adapt to the design requirements of the device, providing you with greater convenience and flexibility.
Capacity expansion
Supporting parallel connection,easily realize the system expansion. It is perfectly adapted to off-grid solar systems, and can effectively store the power converted by solar panels.
BMS & Safe Guarding
Built-in advanced Battery Management System (BMS) monitors the battery status in real time, effectively preventing overcharging, over-discharging, short-circuiting and other safety hazards.
Multi-scenario Application
It is suitable for RV, marine, off-grid and solar energy systems, providing reliable energy solutions for various application scenarios with their high efficiency and long-lasting characteristics.
Battery Capacity |
100Ah |
Rated Voltage |
12.8V |
Battery Power |
1280Wh |
Maximum Charge/ Discharge Current |
100A |
Discharge Cut-Off Voltage |
>8.4V |
Recommended Charge Voltage |
13.8~14.6 V |
Charge Temperature Range |
0-55℃ |
Disharge Temperature Range |
﹣20-55℃ |
Screw size |
M8 |

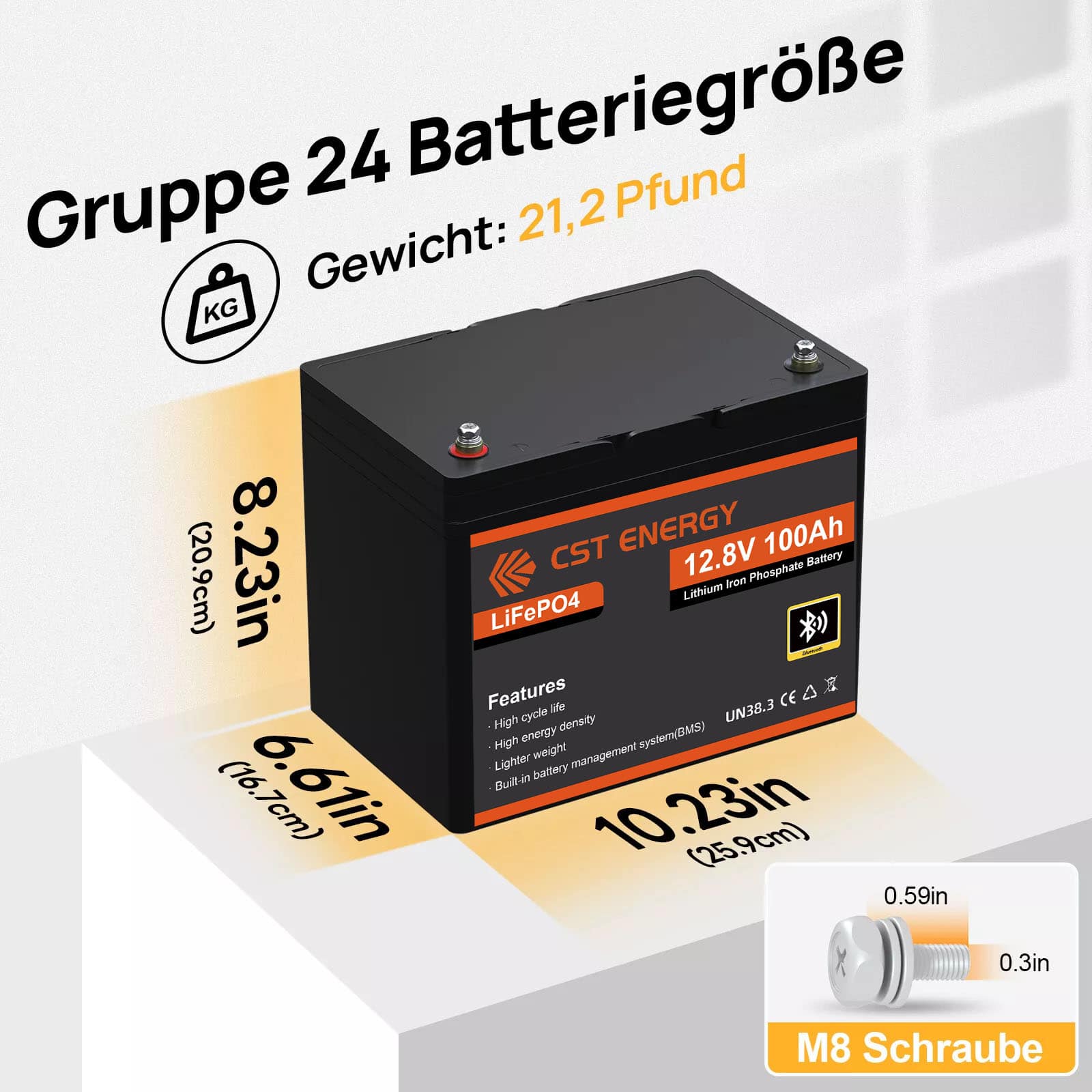

Battery Size |
10.23*6.61*8.23inch |
Battery Weight |
20.88 lbs |
