Cell Type :
Lithium iron phosphateWarranty :
6 yearsNominal Voltage :
25.6VRated Capacity :
100AhEnergy :
2560WhMax. Continuous Charge Current :
100AMax. Continuous Discharge Current :
100A
BMS High-efficiency Protection
The lithium iron phosphate battery has an excellent BMS (Battery Management System) function, which can prevent its overcharge, over-discharge, charge over-current, discharge over-current, short-circuit, cell voltage self balance, high-temp discharge cut off. Recharge from 0% to 80% within 3-4 hrs.
Long Life Cycle
Grade A LiFePO4 Cells makes the 100Ah battery more stable and greater, and the lithium rechargeable battery cycles more than 4000 times, which is more than 4 times comparing with 100AH Lead-acid batteries. And our lithium-iron batteries can maintain 80% capacity after 4000 deep cycles. Can be used in parallel, more suitable for 24V solar panel kit, less wires, less heat loss and less balance issue.
Lightweight Lithium Battery
CST Energy 24V 100Ah lithium battery weighs only 39.15 lbs, only 1/3 of the weight of a lead-acid battery. It makes installation and movement more easier.
Multiple Applications
The LiFePO4 lithium battery is the most stable battery and compatible with RV/campers caravans, ships, golf carts, solar systems or can be used as an emergency power supply.
Battery Capacity |
100Ah |
Rated Voltage |
25.6V |
Battery Power |
2560Wh |
Max Charge/Discharge Current |
100A |
Max Charge Voltage |
29.2V |
Operating Temperature |
-20~55°C |
Screw size |
M8 |

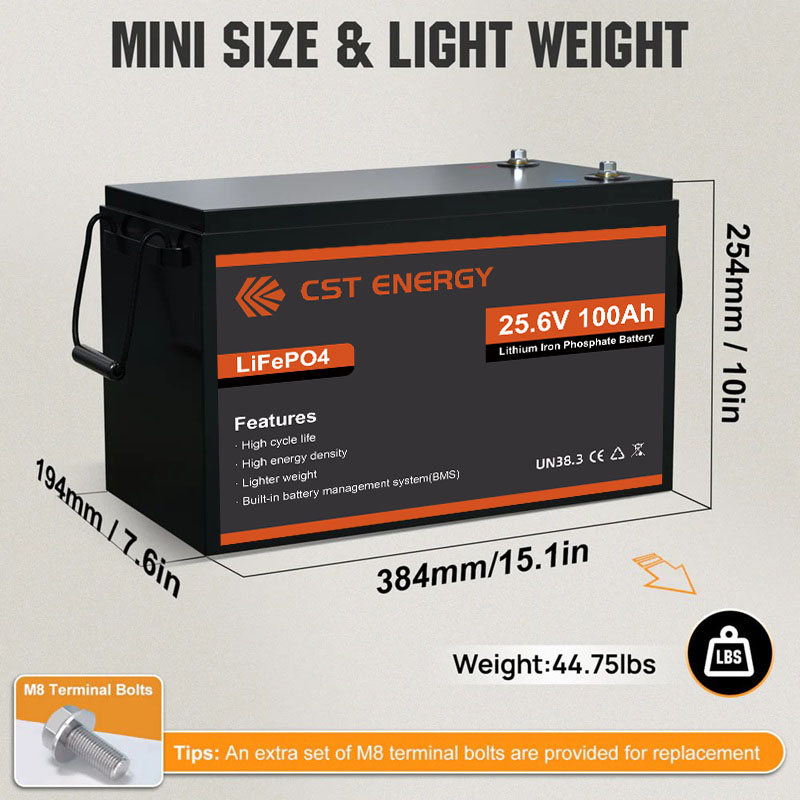

Battery Size |
15.1*7.6*10 inch(38.4*19.4*25.4 cm) |
Battery Weight |
44.75 lbs(20.3 kg) |
